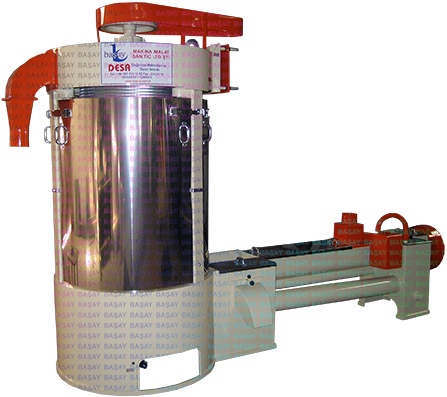

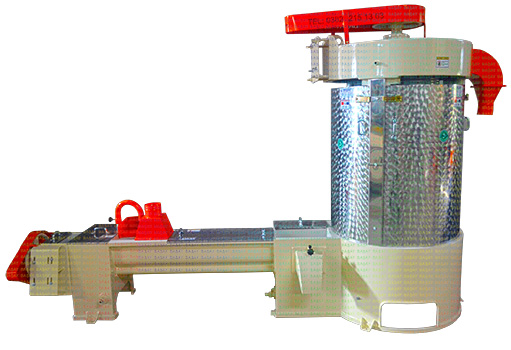

BDY6 BAŞAY DESA VERTICAL WHEAT WASHER AND DRYER

General Machine Specifications

  • The process of washing the wheat with water is to remove it from the foreign materials.
  • Helps to remove garbage, straw and stone from wheat.
  • Designed by Başay Desa R&D to work together with 3 machine in 1 system.
  • 1-) Stone separation system.
  • 2-) Adjustable washing system.
  • 3-) 6 Pallet drying system.
  • Machine-mounted pond system.

Machine Application Fields

  • Flour Product
  • Bulgur Production
  • Special Cleaning Purpose
Machine Tecnical Details

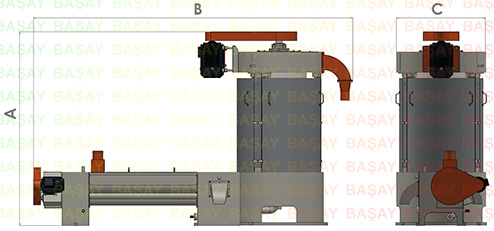

Dimensions A-) Height 217 cm B-) Width 357 cm C-) Depth 100 cm
Power Requirement 9 kw/hour 380V
Weight 1550 kg
Transportation 3 Pallets
Capacity Average Measured Capacity: 3000 kg/hour wheat processing

Optional Equipments/Machines

  • For intake Elevator or Screw Conveyor
  • Magnet for separating iron based metals
  • For discharge Screw Conveyor
  • Dust Filter
